Bouquets of nanoflowers with a golden touch

Using nano size spheres as a starting point, researcher Juan Wang of the University of Twente (MESA+ Institute) creates fascinating structures that can have a wide range of shapes and functionalities. They can even get a beautiful flower-like appearance, with nanowires connected by gold nanospheres. The new nanostructures can be designed for detecting chemical or biological substances at their surface. They have unique optical properties and can also be used for mimicking a biological surface at which water strongly sticks or, instead, easily rolls of.

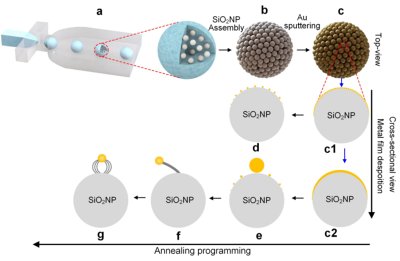

Building with nanospheres makes it possible to, step by step, add functionality. The simplest starting point is a sphere made of silica glass, a few hundred nanometer in size, while the end result can be a of a sphere coated with tiny gold spheres or a with nanowires sticking out: then they look like the sphere-shaped Allium flower. By combining spheres and creating a ‘wrinkly’ surface, a bio-inspired surface is possible that has the sticky characteristics of a rose petal, or the water repellent behavior of a Lotus leaf instead.

Color code

Wang describes other powerful combinations. As the spheres can act as photonic crystals, reflecting a specific color of light, they can together form a color ‘watermark’ that can’t be copied. In materials analysis, the technique of surface plasmon resonance (SPR) is often used in combination with gold surfaces: that’s why gold-covered spheres are very interesting. SPR works by shining light on the surface for activitating electrons: locally the reflected light gives information about the substance on top of the gold. Combining SPR with the photonic crystal behavior, may even lead to materials analysis using a simple color scan, where the color shift can be used as an indication of the binded substances, for example for diagnostics.

The flower-like spheres, of which the silica nanowires are connected by gold on top, have special 'wetting' properties: they can be used for manipulating fluids, for example in separating oil and water or as a basic component in microreactors.

BOTTOM-UP Nanofabrication

Wang’s approach of nano-manufacturing is typically ‘bottom-up’: she starts with a basic component and adds functionality by adding new particles with different length scales. In most nanomanufacturing techniques, the structures are formed by removing material by etching, adding a new layer, again etching patterns in the new layer, and so on. The new, bio-inspired approach adds a powerful platform to fields like microfluidics, photonics and materials engineering.

Juan Wang (1991, Baoji, China) did her research in the BIOS Lab-on-a-Chip Group, part of UT’s MESA+ Institute, and at the South China Academy of Advanced Optoelectronics (South China Normal University, Guangzhou). She defended her PhD thesis on March 6, 2020. The title is 3D Hierarchical Particle Assemblies with Nanostructure-Enabled Functionalities. Her promotors were Prof Jan Eijkel and Prof LinLin Shui (South China Normal University), her co-promotor Prof Loes Segerink.
