Light propagating in a layer of scattering nanoparticles, shows the principles of diffusion - like tea particles in hot water. The deeper light is penetrating into the layer, the lower the energy density. Scientists of University of Twente’s Complex Photonics Group, however, manage to turn this falling diffusion curve into a rising one, by manipulating the incident light. More light energy inside an opaque layer is the result, which could lead to solar cells or LED’s with better yields. The results are published in New Journal of Physics.
Even in a medium characterized by randomness, like a collection of non-organized particles that all scatter light, the net spreading of light is uniform. This is typical for diffusion, a phenomenon physicist like Albert Einstein and Adolf Fick already were interested in. We can observe it all around us.
The randomness in the UT experiments exists of a layer of white paint. Light that’s falling on the collection of zinc oxide particles the paint is made of, will be scattered by the particles. It will start interfering with light, scattered from neighbouring particles. Nevertheless, it will spread out in a uniform way. Theoretically, the energy density will show a linear fall-off with penetration depth. The scientists of the Complex Photonics Group (MESA+ Institute for Nanotechnology) did not take this for granted and worked on a way to turn the falling curve into a rising one, thus enhancing the energy level inside the layer. Following the fundamental diffusion curve, the energy density rises until half of the layer and then falls off.

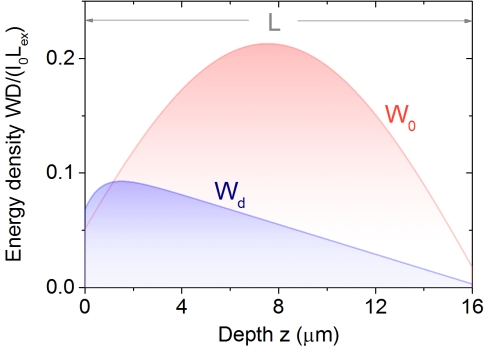

The blue curve shows the expected fall-off of energy density, with increasing penetration depth. The red enhanced diffusion curve shows a very different result, showing a sharp rise and resulting in much more energy inside the layer.
But how to do that without altering the layer? And how to look inside the opaque layer to check if it works? First of all, the scientists don’t alter the layer, but the light. Their ‘wave front shaping’ technique that was developed earlier on, leaves the way open to program the light waves in such a way that they choose the best pathways and show a bright light spot at the backside of the layer. This technique is also suitable for active control of the diffusion process. But how to prove that light moves according to the desired curve? The scientists mix the paint particles with fluorescent nano-size spheres that act as reporters inside the layer. The local energy levels inside the layer are shown by the fluorescent spheres emitting light, with a highly sensitive camera at the backside of the layer measuring total fluorescent intensity.

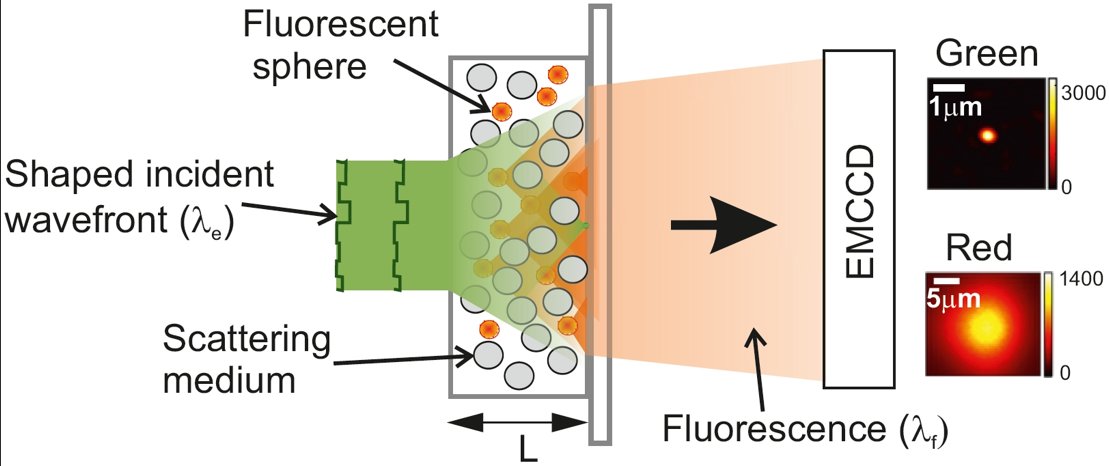

Experimental setup, using fluorescent microscopy to measure the energy levels
The measured energy levels highly agree with the enhanced diffusion curve. Thus, significantly more light energy can be entered into a scattering medium. In solar cells, more light would be available for the conversion into electrical energy. White LEDs can be made more cost-effective, and better lasers with a high yield can be developed. In medical applications, better control of the illumination of tissue is possible. First of all, the scientists prove that it is possible to ‘trick’ light inside complex media.
The paper 'Coupling of energy into the fundamental diffusion mode of a complex nanophotonic medium' by Oluwafemi Ojambati, Hasan Yilmaz, Ad Lagendijk, Allard Mosk and Willem Vos, is published in New Journal of Physics, a journal of the Institute of Physics and the Deutsche Physikalische Gesellschaft.
