Are you in need of a nice wooden box for your newest project? Or maybe a nice engraving for a birthday present?
It is definitely possible with our available laser cutter.
If you wish to use the laser cutter, please use the form below:
Laser cutter details

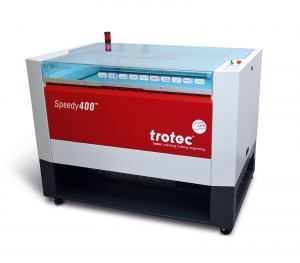

The smartXP has a Trotec Speedy 400, that is available for your use. Whether you need that one replacement part or you want to make a cool name tag, we should be able to help. The laser cutter is there for CreaTe and Itech students and costs will be deducted from your Proto account, but feel free to reach out if you are from a different study as we are more than welcome to help you out. Using the laser cutter is free but you have to pay for materials.
list of suitable materials
Acrylic | max 6 mm |
PETG (copolyester) | max 1 MM |
Birch Plywood | max 6 MM |
Poplar Plywood | max 10 MM |
Cardboard | max 4 MM |
WOOD BOARD / paper | - |
pricing
plates for laser cutting at the SmartXp that can be bought here at the SmartXp
Poplarplate 4x300x600mm €2.00
Poplarplate 4x600x1000mm €6.50
Poplarplate 6x300x600mm €3.50
Poplarplate 6x600x600mm €5.00
Poplarplate 6x600x1000mm €12.00
Poplarplate 8x600x600mm €6.50
Poplarplate 8x600x1000mm €13.00
Poplarplate 10x600x600mm €7.00
Poplarplate 10x600x1000mm €14.00
Gray cardboard 1,2x700x1000mm €1.03
Gray cardboard 1.75x700x1000mm €1.59
Gray cardboard 3x700x1000mm €3.05
Pelkarton 1.25x700x1000mm €1.66
Ivoorkarton 700x1000x200gram €0.32
PETG plates 1mm €0.0175/gram
e.g: PETG plate 620x200x1mm weighs 160gram
Acrylic plates €0.015 /gram
e.g: Acryl plate 300x100x5mm weighs 190gram
Acrylic plates can also be bought at the TCO selfservice workshop
or at several places on the internet like perlaplast-kunststofshop
Not allowed materials:
Polystyrene,
Polycarbonate,
Delrin,
PVC,
MDF and
Hardwood plywood
Be careful when buying Acrylic plates in shops. Sometimes they sell you Polystyrene or Polycarbonate plates instead of Acrylic.
If you are ever in doubt about whether you can use a certain material or not, feel free to email us!
Design rules
- Cutting lines must be RGB red hairlines(vector). A Hairline is a line with a thickness of less than 0,11 mm.
- Engraving parts are grey-level lines/parts or bitmaps. Black is the highest engraving power, and white is the least.
- Lines thinner than 0,11mm are considered to be hairlines even if they are not red and will be cut.
- fileformats: cdr, dxf, eps, pdf, ai.
- Send your design by e-mail to A.P.deVries@utwente.nl or to SmartCrew-eemc@utwente.nl
- Mention details like material and thickness. You should also mention the size of at least one item to avoid conversion errors.
- Maximum size 1000x600mm
- The order in which items are cut is back to front. In Coreldraw: the items on the object list are cut from bottom to top. When cutting “nested” objects, the inner objects will be cut first
- Avoid double cutlines!
Helpful links
A comprehensive guide for the laser cutting novice, written by Philippe Tuinman
Want to make a box? You can use Boxdesigner. It will give you a pdf file that can be loaded in Coreldraw where you can add holes and engravings. Other options:
MakerCase
http://www.fablabamersfoort.nl/svg/
https://www.instructables.com/id/The-Ultimate-Guide-to-Laser-cut-Box-Generators/
Creates boxes and more
Want to make a cardboard folding box? have a look at this site: https://www.templatemaker.nl/en/
You could use Coreldraw on one of the SmartXp desktop systems or ask Alfred. See the inventory for more details.
Ideas on connecting plates can be found at cnc-panel-joinery-notebook
