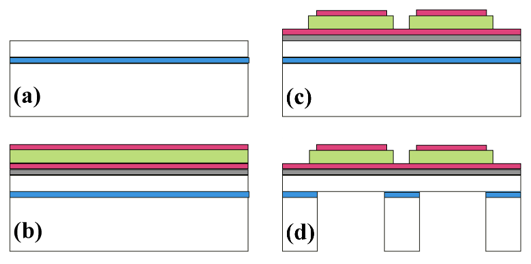

In 4 general steps, the fabrication process can be displayed as follows:

a) Silicon-on-Insulator wafer is used at the start

b) Deposition of the piezoelectric films, electrodes and buffer layers and other films

c) Patterning of the films

d) Patterning of the silicon to create cantilever beams or membranes
