P6158

20X LOW CAPACITANCE PROBE

P6158

Features

  • 3 GHz Bandwidth
  • 1.5 pF Input Capacitance
  • 1 kOhm Input Resistance
  • 22 VRMS Max. Input Voltage
  • Activates 20X Readout in TEKPROBETM Interface Instruments
  • Compact Probe Tip Compatible with a Wide Range of Tektronix Accessories and Adapters

Applications

  • High-speed Device Characterization
  • Propagation Delays for ECL, CMOS and Other Logic Circuitry and Devices
  • Circuit Board Impedance Testing (TDR)
  • High-speed Sampling Systems

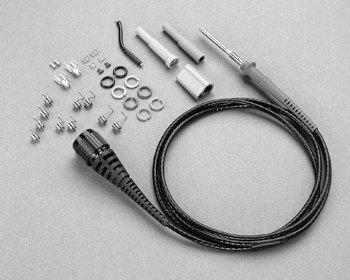

The P6158 is a 3 GHz, 20X, low-capacitance probe. The P6158 is ideal for high-speed applications because of its ability to extend high-frequency response to 3 GHz. The BNC connector incorporates encoding to correct scale factors for 20X attenuation in oscilloscopes with TEKPROBE power supply interface. To facilitate SMD probing, the P6158 comes standard with SureFoot adapters. Additionally, the probe comes standard with an array of short ground leads that insert minimal inductance into the signal path of the measured waveform. The compact probe head/tip assembly is compatible with the full line of 3.5 mm probe accessories. Designed for the TDS500/600/700 and TDS7000 series oscilloscopes, the P6158 probe may also be used with 11000 Series plug-ins and the 11800 Series SD2X Sampling/TDR plug-ins with BNC to SMA Adapters.
