A tattoo that is warning you for too many hours of sunlight exposure, or is alerting you for taking your medication? Next to their cosmetic role, tattoos could get new functionality using intelligent ink. That would require more precise and less invasive injection technique. Researchers of the University of Twente now develop a micro-jet injection technology that doesn’t use needles at all. Instead, an ultrafast liquid jet with the thickness of a human hair penetrates the skin. It isn’t painful and there is less waste. In there new publication in the Journal of Applied Physics, the scientists compare both the needle and the fluid jet approach.
Ötzi the Iceman already had, over 5000 years ago, dozens of simple tattoos on his body, apparently for pain relief. Since the classic ‘anchor’ tattoo that sailors had on their arms, tattoos have become more and more common. About 44 million Europeans wear one or more of them. Despite its wider acceptance in society, the underlying technique didn’t change and still has health risks. One or more moving needles put ink underneath the skin surface. This is painful and can damage the skin. Apart from that, needles have to be disposed of in a responsible way, and quite some ink is wasted. The alternative that David Fernández Rivas and his colleagues are developing, doesn’t use any needles. In their new paper, they compare this new approach with classic needle technology, on an artificial skin material and using high speed images. Remarkably, according to Fernández Rivas, the classic needle technology has never been subject of research in such a thorough way, using high speed images.
Fast fluid jet
The new technique employs a laser for rapidly heating a fluid that is inside a microchannel on a glass chip. Heated above the boiling point, a vapour bubble forms and grows, pushing the liquid out at speeds up to 100 meter per second (360 km/h). The jet, about the diameter of a human hair, is capable of going through human skin. “You don’t feel much of it, no more than a mosquito bite”, say Fernandez Rivas.

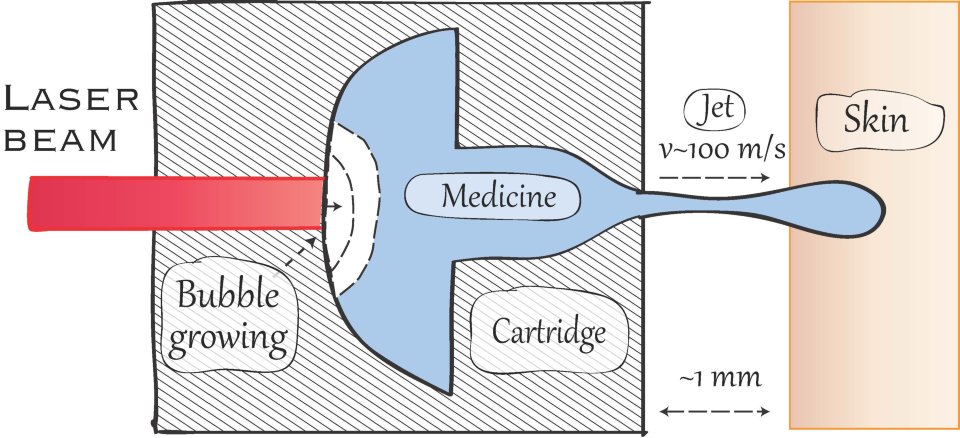

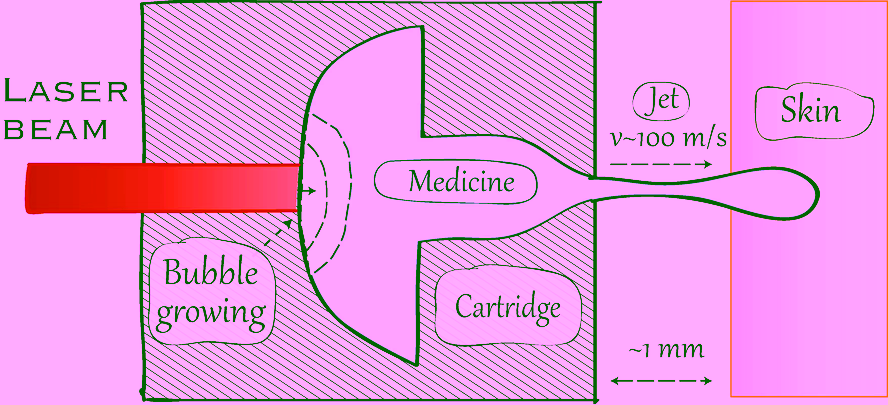

Working principle of needle-free injection: laser heating the fluid.The growing bubble pushes out the fluid (medicine or ink) at very high speed.
The researchers did their experiments with a number of commercially available inks. Compared to a tattoo machine, the micro-jet consumes a small amount of energy. What’s more important, it minimizes skin damage and the injection efficiency is much higher, there is no loss of fluids. And there is no risk of contaminated needles. The current microjet is a single one, while tattooing is often done using multiple needles with different types or colours of ink. Also, the volume that can be ‘delivered’ by the microjet has to be increased. These are next steps in developing the needle-free technology.
In today’s medical world, tattoo-resembling techniques are used for treatment of skin, masking scars, or treating hair diseases. These are other areas in which the new technique can be used, as well as in vaccination. A challenging idea is using tattoos for cosmetic purposes and as health sensors at the same time. What if ink is light-sensitive or responds to certain substances that are present in the skin or in sweat?
On this new approach, scientists, students, entrepreneurs and tattoo artists join a special event ‘The future under our skin’, organized by David Fernandez Rivas.
Research has been done in the Mesoscale Chemical Systems group, part of UT’s MESA+ Institute.
The paper ‘High speed imaging of solid needle and liquid micro-jet injections’, by Loreto Oyarte Gálvez, Maria Brió Pérez and David Fernández Rivas, was published by the Journal of Applied Physics.
