Confocal Displacement Sensor
Manufacturer and model | Keyence - CL-L030 |

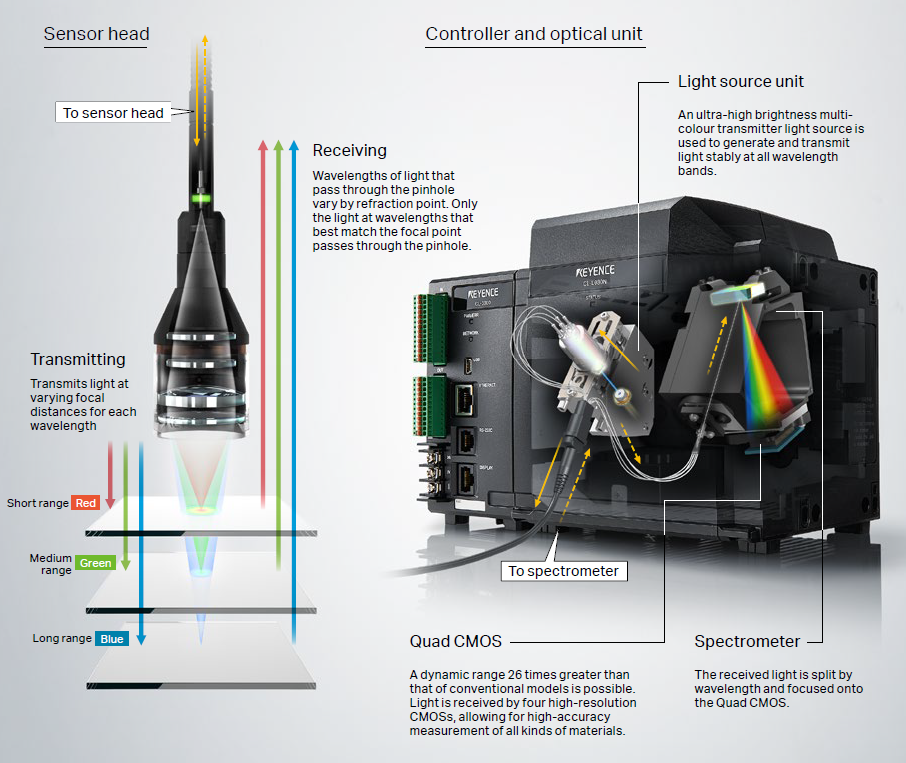

Illustration of the sensor | |

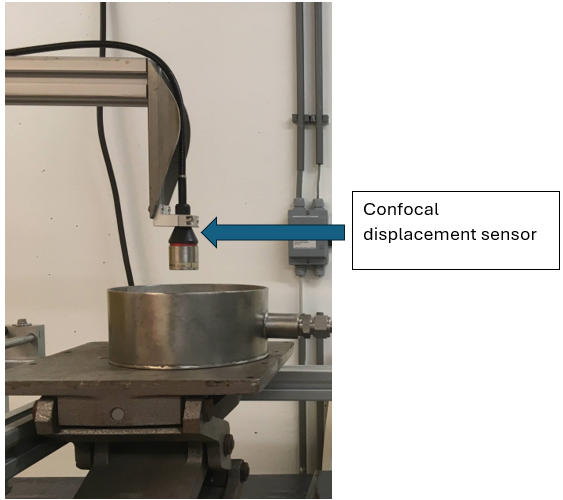

Sensor in usage |
|
Specifications of interest | Measurmeent range: +/- 3.7 mm Linearity: +/-0.94 μm Resulution: 0.25 μm Sampling cycle: 100/200/500/1000 μs (Adjustable 4-stage) Ambient operating illuminance Target surface illuminance: 30000 lux (Incandescent lamp) Operating ambient temperature 0 to 50 °C Operating ambient humidity 85% RH or less (no condensation) |
Example of research output with this sensor. |
